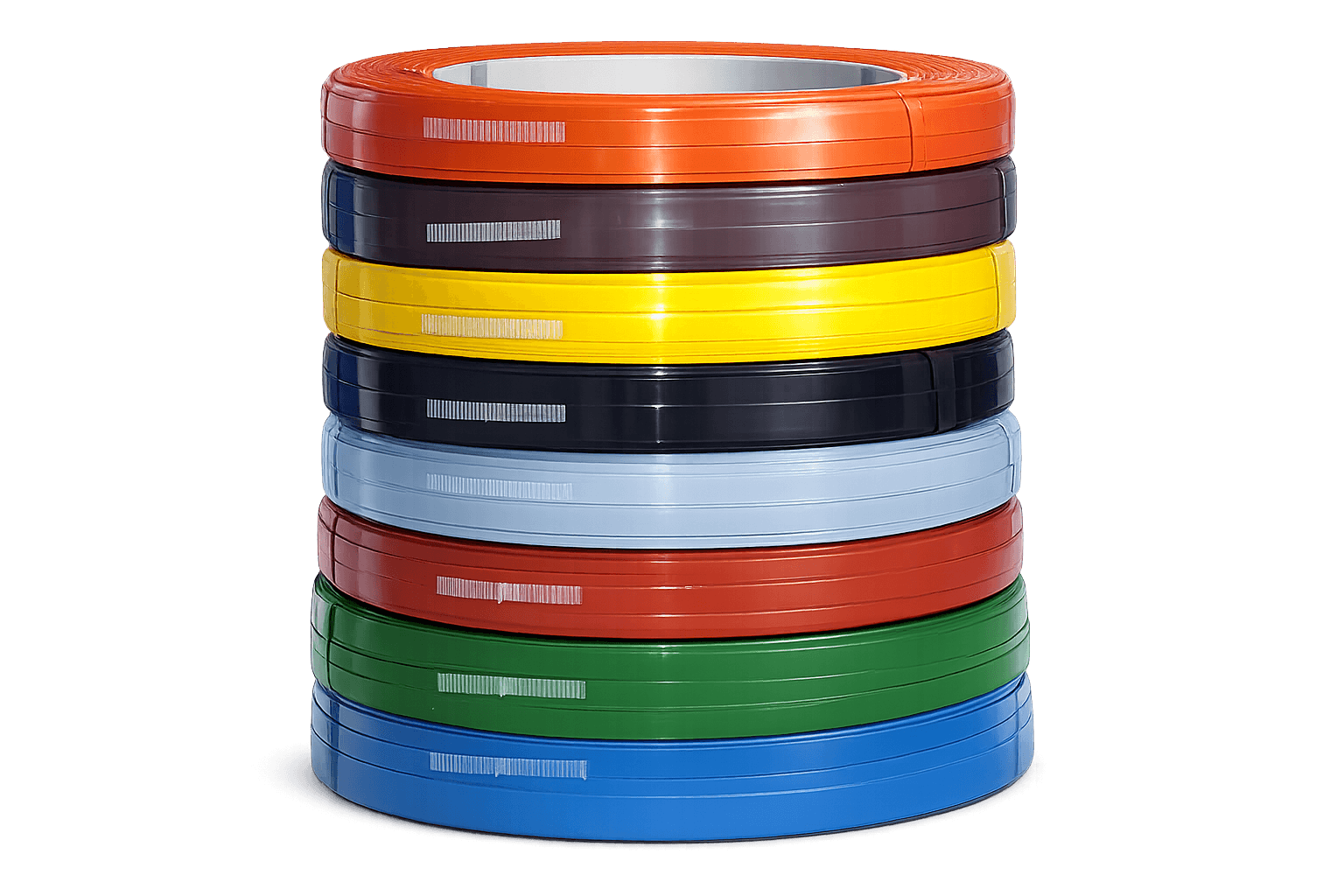

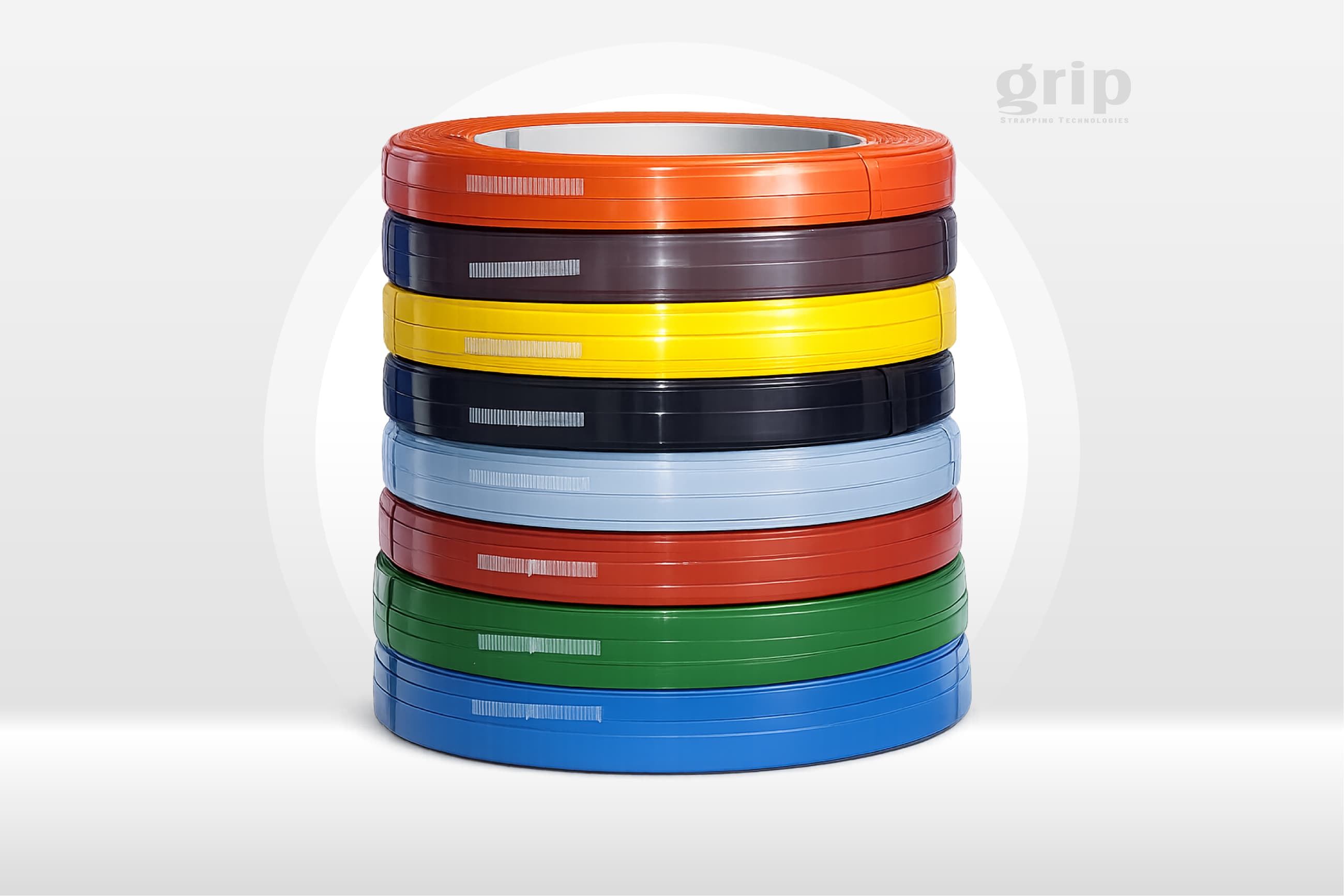

A standard-duty steel strapping solution ideal for everyday industrial bundling, carton sealing, and unitizing light to medium loads. Manufactured from cold-rolled, medium-carbon steel. It typically features a painted and waxed finish to resist corrosion and allow for smooth tension transmission around corners. Standard tensile strength generally ranges around 75 kg/mm², with limited elongation (approx. 1-2%).

Peak break load

0 kg

Width Range

12.70 to 31.75 mm

STEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSUREDSTEEL STRAPPINGUNIFLEXMADE IN INDIASECURE PACKAGINGQUALITY ASSURED

Technical Data

Specifications

Item Name	Width	Thickness	Break Load	Elongation (GL=150mm)	Minimum UTS (Kg/mm²)	Bend	Winding				Yield (m/Kg)
Item Name	(mm)	(mm)	(Kg)	Elongation (GL=150mm)	Minimum UTS (Kg/mm²)	Bend	R	M	J	SJ	Yield (m/Kg)
UF1215	12.7	0.38	362	1.5% max	75	2	–		–	–	26.4
UF1218	12.7	0.46	438	1.5% max	75	2	–		–	–	21.8
UF1220	12.7	0.51	486	1.5% max	75	2	–		–	–	19.7
UF1223	12.7	0.58	552	1.5% max	75	2	–		–	–	17.3
UF5815	15.88	0.38	453	1.5% max	75	2			–	–	21.1
UF5818	15.88	0.46	548	1.5% max	75	2			–	–	17.4
UF5820	15.88	0.51	607	1.5% max	75	2			–	–	15.7
UF5823	15.88	0.58	691	1.5% max	75	2			–	–	13.8
UF3415	19.05	0.38	545	1.5% max	75	2			–	–	17.6
UF3418	19.05	0.46	657	1.5% max	75	2			–	–	14.5
UF3420	19.05	0.51	729	1.5% max	75	2			–	–	13.2
UF3423	19.05	0.58	829	1.5% max	75	2			–	–	11.5
UF3425	19.05	0.64	914	1.5% max	75	2				–	10.3
UF3431	19.05	0.79	1129	1.5% max	75	2				–	8.5
UF1425	31.75	0.64	1524	1.5% max	75	2		–			6.2
UF1431	31.75	0.79	1881	1.5% max	75	2		–			5.1

Tolerances

Width	±0.127 mm
Thickness	+0.05 mm,-0.025 mm
Paint Thickness	Regular Colors - 5.0 microns Zinc Coated - 7.0 microns
Coil Weight	Regular - 45-50 Kgs approx. Jumbo/Super Jumbo - 150-450 Kgs approx.
Curl	≤ 25.4mm per 2440 mm
Camber	≤ 12.7mm per 2440 mm
Twist	≤ 20° per 2440 mm
Slippage	Maximum 7Kg
Winding Type	R - Ribbon M - Mill J - Jumbo SJ - Super Jumbo

Finishing

Painted and Waxed to provide corrosion resistance and improved tension transmission around corner loads.
For exceptional rust resistance, the strap is coated with zinc and waxed.
