Edge Protectors
Plastic, paper & metal angle boards that safeguard product edges from strap pressure during transit.

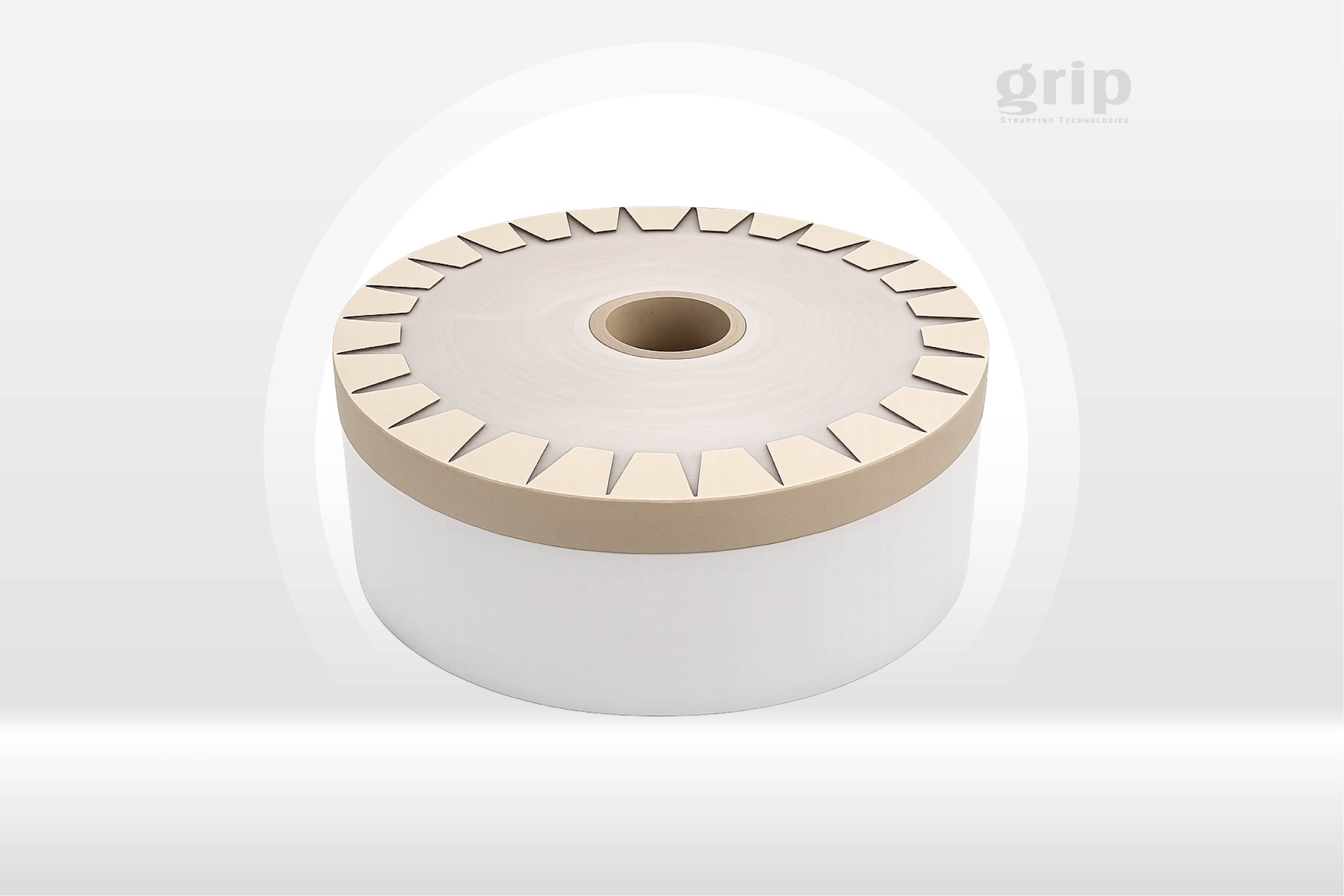

ID/ODProtectors
Protective rings or inserts applied to the Inner Diameter (ID) or Outer Diameter (OD) of coiled products (like steel, aluminum, or paper) to prevent damage from strapping. Engineered to distribute localized strap tension over a wider surface area. Metal protectors offer high shear resistance for steel coils; plastic provides flexible, moisture-resistant protection; and Kraft paper offers an economical, non-abrasive buffer for delicate surfaces.
Protective rings/inserts for Inner/Outer Diameter of coiled products.
Prevents damage from strapping by distributing localized tension.
Metal protectors offer high shear resistance for steel coils.
Plastic provides flexible protection; paper offers an economical buffer.
| Item Name | Leg Length (MM) | Thickness (MM) |
|---|---|---|
| IDOD7525 | 75x75 | 2.5 |
| IDOD7530 | 75x75 | 3 |
| IDOD6525 | 65x65 | 2.5 |
| IDOD6530 | 65x65 | 3 |
| IDOD5030 | 50x50 | 3 |
| IDOD4030 | 40x40 | 3 |
| IDOD3525 | 35x35 | 2.5 |
| IDOD3530 | 35x35 | 3 |
| IDOD3025 | 30x30 | 2.5 |
| IDOD3030 | 30x30 | 3 |
