Case Erectors and Sealers
Automated carton erecting, packing and sealing systems for high-volume production lines.

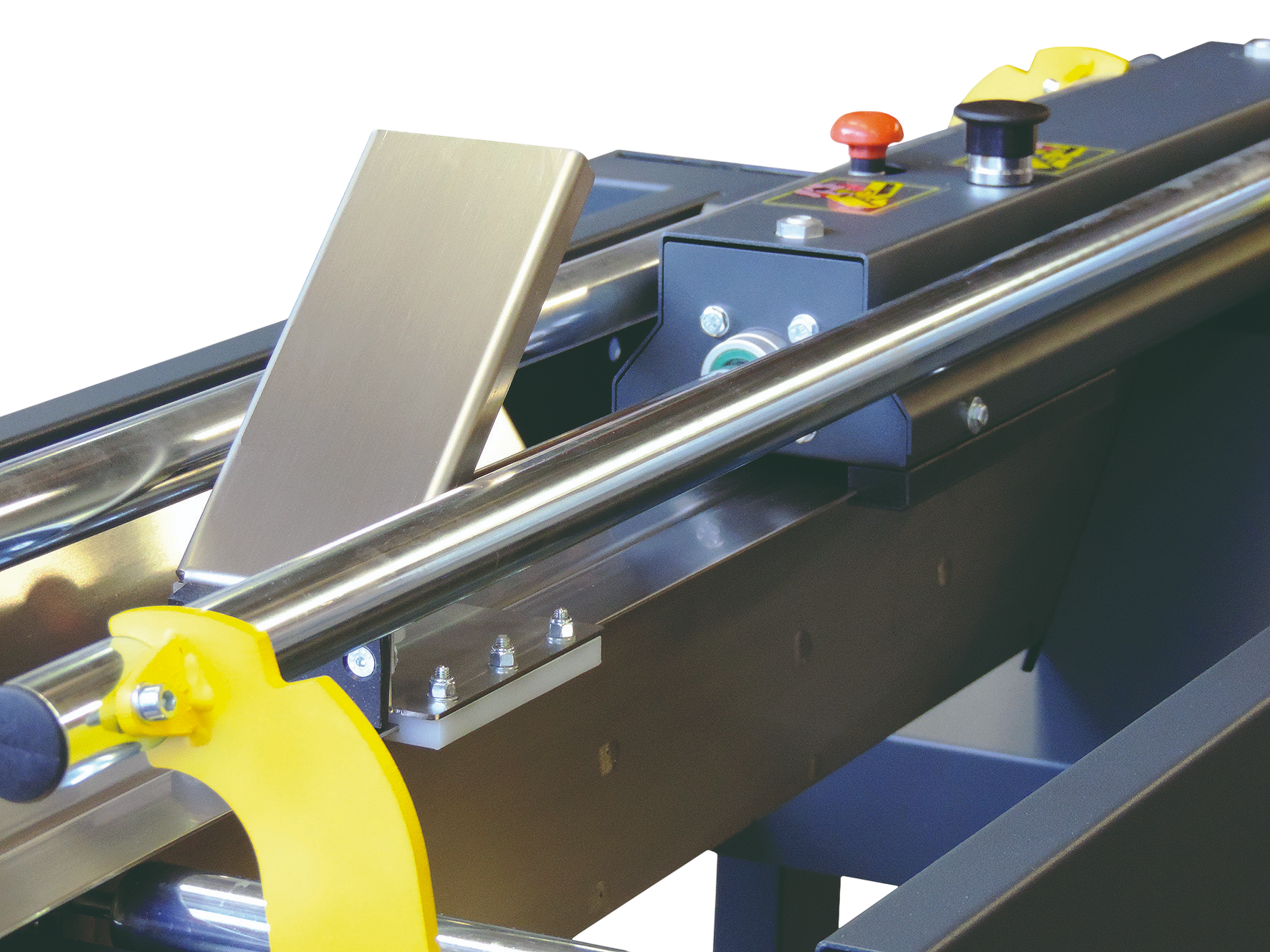

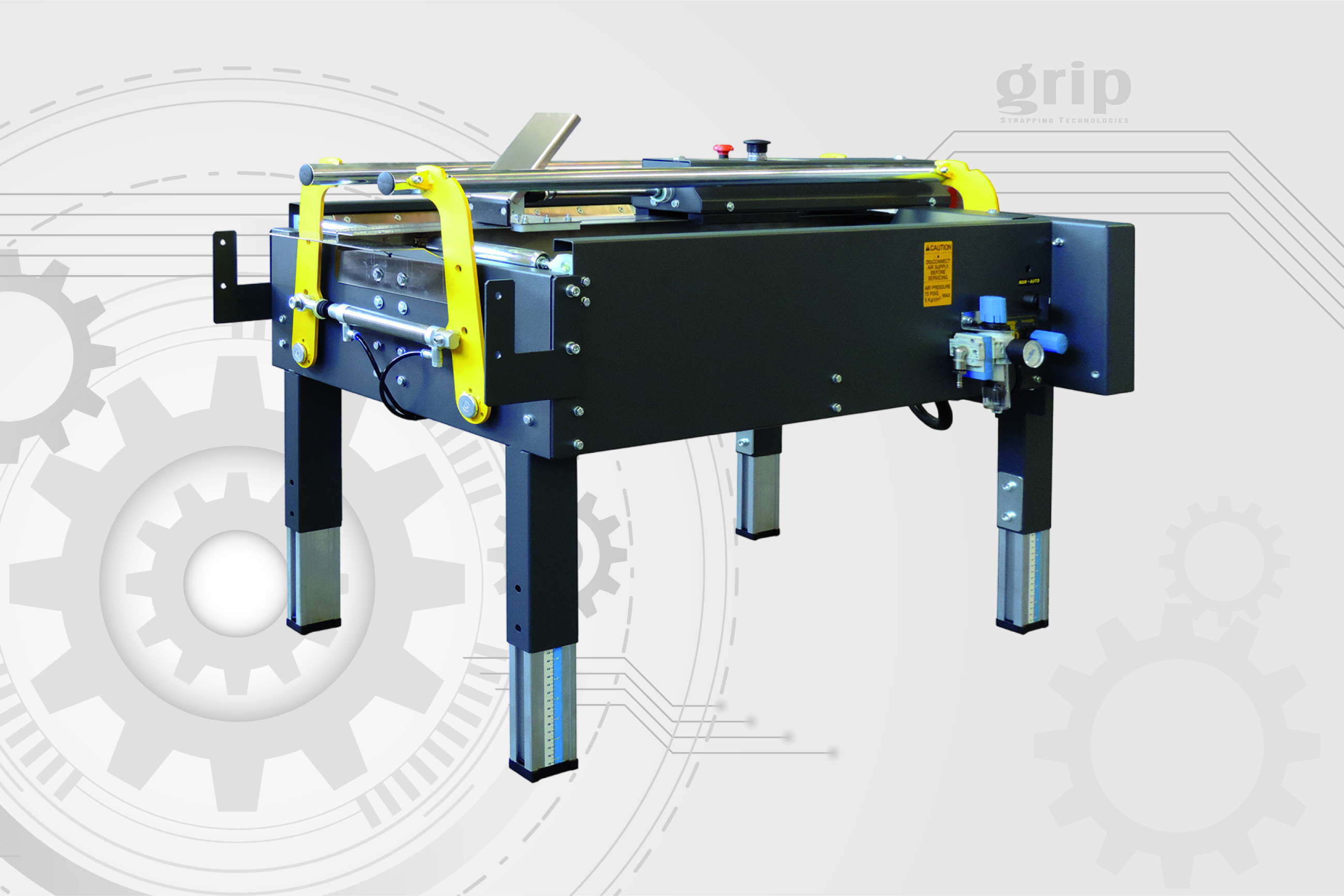

SemiAutomaticCaseErector(F105)
The F105 Semi-Automatic Case Erector is designed to streamline your packaging process by folding the bottom flaps of boxes placed on the machine by an operator, saving up to 50% of the time typically required. This efficient system ensures that boxes are automatically folded and held in a vertical position, ready for filling. After the filling operation, a pneumatic pusher drives the box towards a case sealer where it is sealed with adhesive tape, further optimizing the packaging workflow.
Ensures precise positioning of the box, enhancing the accuracy and efficiency of the packaging process.
Keeps the box steady and upright during filling operations, facilitating easier and faster packing.
Features minimum width and height adjustability, allowing it to accommodate various box sizes for greater versatility.
| Parameter | Value |
|---|---|
| Box Dimensions (Min.) (LxWxH mm) | 200x90x90 |
| Box Dimensions (Max.) (LxWxH mm) | 600x500x500 |
| Maximum Production Capacity (BPH) | 600 |
| Air Consumption (NL/Cycle) | 14.2 |
| Air Pressure (Bar) | 5.5 to 7 |
